IS, IH single stage signle suction rawwater (anti-corrosion type) centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
IS, IH single stage signle suction rawwater (anti-corrosion type) centrifugal pumps
summary
IS,IH single stage single suction (axial inhaled) centrifugal pump is suitable for conveying rawwater or chemical and physical properties that similar to water and other liquid, temperature in not more than 80℃. performance scope ( calculate according to the design point) rotate speed：2900r/min or 1450r/min suction diameter：50～200mm flow：6.3～400m3/h head：5～125m

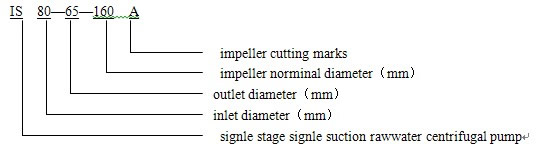

type meaning
IS, IH single stage signle suction rawwater (anti-corrosion type) centrifugal pump type meaning
performance parameters
| ype | flow | head m | rotate speed r/min | power KW | efficiency % | impeller nominal diameter mm | NPSH m | ||
| m3/h | L/s | shaft power | motor power | ||||||
| IS、IH50-32-125 | 7.5 12.5 15 | 2.08 3.47 4.17 | 22 20 18.5 | 2900 | 0.96 1.13 1.26 | 2.2 | 47 60 60 | 130 | 2.0 2.0 2.5 |
| IS、IH50-32-125A | 11.2 | 3.1 | 16 | 2900 | 0.84 | 1.1 | 58 | 116 | 2.0 |
| IS、IH50-32-160 | 7.5 12.5 15 | 2.08 3.47 4.17 | 34.3 32 9.6 | 2900 | 1.59 2.02 2.16 | 3 | 44 54 56 | 158 | 2.0 2.0 2.5 |
| IS、IH50-32-160A | 11.7 | 3.3 | 28 | 2900 | 1.71 | 2.2 | 53 | 148 | 2.0 |
| IS、IH50-32-160B | 10.8 | 3 | 24 | 2900 | 1.14 | 2.2 | 50 | 137 | 2.0 |
| IS、IH50-32-200 | 7.5 12.5 15 | 2.08 3.47 4.17 | 52.5 50 48 | 2900 | 2.82 3.54 3.95 | 5.5 | 38 48 51 | 198 | 2.0 2.0 2.5 |
| IS、IH50-32-200A | 11.7 | 3.3 | 44 | 2900 | 3.16 | 4 | 45 | 186 | 2.0 |
| IS、IH50-32-200B | 10.8 | 3 | 38 | 2900 | 2.60 | 3 | 43 | 173 | 2.0 |
| IS、IH50-32-250 | 7.5 12.5 15 | 2.08 3.47 4.17 | 82 80 78.5 | 2900 | 5.87 7.16 7.83 | 11 | 28.5 38 41 | 250 | 2.0 2.0 2.5 |
| IS、IH50-32-250A | 11.7 | 3.3 | 70 | 2900 | 6.47 | 7.5 | 35 | 234 | 2.0 |
| IS、IH50-32-250B | 10.8 | 3 | 60 | 2900 | 5.51 | 7.5 | 32 | 217 | 2.0 |
| IS、IH65-50-125 | 15 25 30 | 4.17 6.94 8.33 | 21.8 20 18.5 | 2900 | 1.54 1.97 2.22 | 3 | 58 69 68 | 130 | 2.0 2.5 3.0 |
| IS、IH65-50-125A | 22.4 | 6.2 | 16 | 2900 | 1.47 | 2.2 | 66 | 116 | 2.0 |
| IS、IH65-50-160 | 15 25 30 | 4.17 6.94 8.33 | 35 32 30 | 2900 | 2.65 3.35 3.71 | 5.5 | 54 65 66 | 165 | 2.0 2.0 2.5 |
| IS、IH65-50-160A | 23.4 | 6.5 | 28 | 2900 | 2.83 | 4 | 63. | 154 | 2.0 |
| IS、IH65-50-160B | 21.7 | 4 | 24 | 2900 | 2.35 | 4 | 60 | 143 | 2.0 |
| IS、IH65-40-200 | 15 25 30 | 4.17 6.94 8.33 | 53 50 47 | 2900 | 4.42 5.67 6.29 | 7.5 | 49 60 61 | 200 | 2.0 2.0 2.5 |
| IS、IH65-40-200A | 23.4 | 6.5 | 44 | 2900 | 4.92 | 5.5 | 57 | 188 | 2.0 |
| IS、IH65-40-200B | 21.8 | 6.1 | 38 | 2900 | 4.13 | 5.5 | 55 | 175 | 2.0 |
| IS、IH65-40-250 | 15 25 30 | 4.17 6.94 8.33 | 82 80 78 | 2900 | 9.05 10.89 12.02 | 15 | 37 50 53 | 254 | 2.0 2.0 2.5 |
| IS、IH65-40-250A | 23.4 | 6.5 | 70 | 2900 | 9.10 | 11 | 49 | 238 | 2.0 |
| IS、IH65-40-250B | 21.7 | 6 | 60 | 2900 | 7.51 | 11 | 47 | 220 | 2.0 |
| IS、IH65-40-315 | 15 25 30 | 4.17 6.94 8.33 | 127 125 123 | 2900 | 18.5 21.3 22.8 | 30 | 28 40 44 | 315 | 2.5 2.5 3.0 |
| IS、IH65-40-315A | 23.9 | 6.6 | 114 | 2900 | 19.41 | 22 | 38 | 301 | 2.5 |
| IS、IH65-40-315B | 22.7 | 6.3 | 103 | 2900 | 17.19 | 22 | 37 | 286 | 2.5 |
| IS、IH65-40-315C | 21.4 | 5.9 | 92 | 2900 | 15.2 | 18.5 | 35 | 270 | 2.5 |
| IS、IH80-65-125 | 30 50 60 | 8.33 13.9 16.7 | 22.5 20 18 | 2900 | 2.87 3.63 3.98 | 5.5 | 64 75 74 | 137 | 3.0 3.0 3.5 |
| IS、IH80-65-125A | 44.7 | 12.4 | 16 | 2900 | 2.66 | 3 | 83 | 125 | 3.0 |
| IS、IH80-65-160 | 30 50 60 | 8.33 13.9 16.7 | 36 32 29 | 2900 | 4.82 5.97 6.59 | 7.5 | 61 73 72 | 168 | 2.5 2.5 3.0 |
| IS、IH80-65-160A | 46.8 | 13 | 28 | 2900 | 5.10 | 5.5 | 70 | 157 | 2.5 |
| IS、IH80-65-160B | 43.3 | 12 | 24 | 2900 | 4.15 | 5.5 | 68 | 146 | 2.5 |
| IS、IH80-50-200 | 30 50 60 | 8.33 13.9 16.7 | 55 50 47 | 2900 | 7.87 9.87 10.8 | 15 | 55 69 71 | 202 | 2.5 2.5 3.0 |
| IS、IH80-50-200A | 46.8 | 13 | 44 | 2900 | 8.37 | 11 | 67 | 190 | 2.5 |
| IS、IH80-50-200B | 43.6 | 12.1 | 38 | 2900 | 6.83 | 11 | 66 | 176 | 2.5 |
| IS、IH80-50-250 | 30 50 60 | 8.33 13.9 16.7 | 84 80 75 | 2900 | 13.2 17.3 19.2 | 22 | 52 63 64 | 252 | 2.5 2.5 3.0 |
| IS、IH80-50-250A | 46.8 | 13 | 70 | 2900 | 14.87 | 18.5 | 60 | 238 | 2.5 |
| IS、IH80-50-250B | 43.3 | 13 | 60 | 2900 | 13.18 | 15 | 58 | 218 | 2.5 |
| IS、IH80-50-315 | 30 50 60 | 8.33 13.9 16.7 | 128 125 123 | 2900 | 25.5 31.5 35.3 | 37 | 41 54 57 | 315 | 2.5 2.5 3.0 |
| IS、IH80-50-315A | 47.8 | 13.3 | 114 | 2900 | 29.15 | 37 | 51 | 301 | 2.5 |
| IS、IH80-50-315B | 45.4 | 12.6 | 103 | 2900 | 25.97 | 30 | 49 | 286 | 2.5 |
| IS、IH80-50-315C | 42.9 | 11.9 | 92 | 2900 | 22.84 | 30 | 47 | 270 | 2.5 |
| IS、IH100-80-125 | 60 100 120 | 16.7 27.8 33.3 | 24 20 16.5 | 2900 | 5.86 7.0 7.28 | 11 | 67 78 74 | 140 | 4.0 4.5 5.0 |
| IS、IH100-80-125A | 89.4 | 24.8 | 16 | 2900 | 5.19 | 7.5 | 75 | 125 | 4.5 |
| IS、IH100-80-160 | 60 100 120 | 16.7 27.8 33.3 | 36 32 28 | 2900 | 8.42 11.2 12.2 | 15 | 70 78 75 | 170 | 3.5 4.0 5.0 |
| IS、IH100-80-160A | 93.5 | 26 | 28 | 2900 | 9.52 | 11 | 75 | 159 | 4.0 |
| IS、IH100-80-160B | 86.6 | 24.1 | 24 | 2900 | 7.77 | 11 | 73 | 147 | 4.0 |
| IS、IH100-65-200 | 60 100 120 | 16.7 27.8 33.3 | 54 50 47 | 2900 | 13.6 17.9 19.9 | 22 | 65 76 77 | 203 | 3.0 3.6 4.8 |
| IS、IH100-65-200A | 93.8 | 26.1 | 44 | 2900 | 15.01 | 18.5 | 75 | 190 | 3.6 |
| IS、IH100-65-200B | 87.2 | 24.2 | 38 | 2900 | 12.52 | 15 | 75 | 177 | 3.6 |
| IS、IH100-65-250 | 60 100 120 | 16.7 27.8 33.3 | 87 80 74.5 | 2900 | 23.4 30.3 33.3 | 37 | 61 72 73 | 255 | 3.5 3.8 4.8 |
| IS、IH100-65-250A | 93.5 | 26 | 70 | 2900 | 25.49 | 30 | 70 | 239 | 3.8 |
| IS、IH100-65-250B | 86.6 | 24.1 | 60 | 2900 | 20.85 | 30 | 68 | 221 | 3.8 |
| IS、IH100-65-315 | 60 100 120 | 16.7 27.8 33.3 | 133 125 118 | 2900 | 39.6 51.6 57.5 | 75 | 55 66 67 | 315 | 3.0 3.6 4.2 |
| IS、IH100-65-315A | 95.5 | 26.5 | 114 | 2900 | 46.28 | 55 | 64 | 301 | 3.6 |
| IS、IH100-65-315B | 90.8 | 25.2 | 103 | 2900 | 41.04 | 45 | 62 | 286 | 3.6 |
| IS、IH100-65-315C | 84.8 | 23.8 | 92 | 2900 | 35.78 | 45 | 60 | 271 | 3.6 |
| IS、IH125-100-200 | 120 200 240 | 33.3 55.5 66.7 | 57.5 50 44.5 | 2900 | 28.0 33.6 36.4 | 45 | 67 81 80 | 216 | 4.5 4.5 5.0 |
| IS、IH125-100-200A | 187 | 52 | 44 | 2900 | 28.76 | 37 | 78 | 203 | 4.5 |
| IS、IH125-100-200B | 174.4 | 48.4 | 38 | 2900 | 23.73 | 30 | 76 | 188 | 4.5 |
| IS、IH125-100-250 | 120 200 240 | 33.3 55.6 66.7 | 87 80 72 | 2900 | 43.0 55.9 62.8 | 75 | 66 78 75 | 255 | 3.8 4.2 5.0 |
| IS、IH125-100-250A | 187 | 52 | 70 | 2900 | 46.96 | 55 | 76 | 239 | 4.2 |
| IS、IH125-100-250B | 173.2 | 48.1 | 60 | 2900 | 38.24 | 45 | 74 | 221 | 4.2 |
| IS、IH125-100-315 | 120 200 240 | 33.3 55.6 66.7 | 132.5 125 120 | 2900 | 72.1 90.8 101.9 | 110 | 60 75 77 | 317 | 4.0 4.5 5.0 |
| IS、IH125-100-315A | 191 | 53.1 | 114 | 2900 | 81.30 | 90 | 73 | 303 | 4.5 |
| IS、IH125-100-315B | 181.5 | 50.4 | 103 | 2900 | 71.68 | 90 | 71 | 288 | 4.5 |
| IS、IH125-100-315C | 171.6 | 47.7 | 92 | 2900 | 62.35 | 75 | 69 | 272 | 4.5 |
| IS、IH50-32-125 | 3.75 6.3 7.5 | 1.04 1.74 2.08 | 5.4 5.0 4.6 | 1450 | 0.13 0.16 0.17 | 0.55 | 43 54 55 | 130 | 2.0 2.0 2.5 |
| IS、IH50-32-125A | 5.6 | 1.6 | 4 | 1450 | 0.12 | 0.55 | 53 | 116 | 2.0 |
| IS、IH50-32-160 | 3.75 6.3 7.5 | 1.04 1.74 2.08 | 8.5 8.0 7.5 | 1450 | 0.25 0.29 0.31 | 0.55 | 35 48 49 | 158 | 2.0 2.0 2.5 |
| IS、IH50-32-160A | 5.8 | 1.6 | 7 | 1450 | 0.24 | 0.55 | 46 | 148 | 2.0 |
| IS、IH50-32-160B | 5.4 | 1.5 | 6 | 1450 | 0.21 | 0.55 | 43 | 137 | 2.0 |
| IS、IH50-32-200 | 3.75 6.3 7.5 | 1.04 1.74 2.08 | 13.1 12.5 12 | 1450 | 0.41 0.51 0.56 | 0.75 | 33 42 44 | 198 | 2.0 2.0 2.5 |
| IS、IH50-32-200A | 5.8 | 1.6 | 11 | 1450 | 0.43 | 0.55 | 40 | 186 | 2.0 |
| IS、IH50-32-200B | 5.4 | 1.5 | 9.5 | 1450 | 0.37 | 0.55 | 38 | 173 | 2.0 |
| IS、IH50-32-250 | 3.75 6.3 7.5 | 1.04 1.74 2.08 | 20.5 20 19.5 | 1450 | 0.91 1.07 1.14 | 1.5 | 23 32 35 | 250 | 2.2 2.0 2.5 |
| IS、IH50-32-250A | 5.8 | 1.6 | 17.5 | 1450 | 0.92 | 1.5 | 30 | 234 | 2.0 |
| IS、IH50-32-250B | 5.4 | 1.5 | 15 | 1450 | 0.85 | 1.1 | 26 | 217 | 2.0 |
| IS、IH65-50-125 | 7.5 12.5 15 | 2.08 3.47 4.17 | 5.35 5.0 4.7 | 1450 | 0.21 0.27 0.30 | 0.55 | 53 64 65 | 130 | 2.0 2.0 2.5 |
| IS、IH65-50-125A | 11.2 | 3.1 | 4 | 1450 | 0.20 | 0.55 | 62 | 116 | 2.0 |
| IS、IH65-50-160 | 7.5 12.5 15 | 2.08 3.47 4.17 | 8.8 8.0 7.2 | 1450 | 0.36 0.45 0.49 | 0.75 | 50 60 60 | 165 | 2.0 2.0 2.5 |
| IS、IH65-50-160A | 11.7 | 3.3 | 7 | 1450 | 0.39 | 0.55 | 58 | 154 | 2.0 |
| IS、IH65-50-160B | 10.8 | 3 | 6 | 1450 | 0.32 | 0.55 | 56 | 143 | 2.0 |
| IS、IH65-40-200 | 7.5 12.5 15 | 2.08 3.47 4.17 | 13.2 12.5 11.8 | 1450 | 0.63 0.77 0.85 | 1.1 | 43 55 57 | 200 | 2.0 2.0 2.5 |
| IS、IH65-40-200A | 11.7 | 3.3 | 11 | 1450 | 0.70 | 1.1 | 51 | 188 | 2.0 |
| IS、IH65-40-200B | 10.8 | 3 | 9.5 | 1450 | 0.58 | 0.75 | 49 | 175 | 2.0 |
| IS、IH65-40-250 | 7.5 12.5 15 | 2.08 3.47 4.17 | 21 20 19.4 | 1450 | 1.23 1.49 1.65 | 2.2 | 35 46 48 | 254 | 2.0 2.0 2.5 |
| IS、IH65-40-250A | 11.7 | 3.3 | 17.5 | 1450 | 1.23 | 1.5 | 46 | 238 | 2.0 |
| IS、IH65-40-250B | 10.8 | 3 | 15 | 1450 | 1.00 | 1.5 | 44 | 220 | 2.0 |
| IS、IH65-40-315 | 7.5 12.5 15 | 2.08 3.47 4.17 | 32.3 32.0 31.7 | 1450 | 2.63 2.94 3.16 | 4 | 25 37 41 | 315 | 2.5 2.5 3.0 |
| IS、IH65-40-315A | 11.9 | 3.3 | 28.5 | 1450 | 2.63 | 3 | 35 | 301 | 2.5 |
| IS、IH65-40-315B | 11.3 | 3.2 | 25.8 | 1450 | 2.38 | 3 | 34 | 286 | 2.5 |
| IS、IH65-40-315C | 10.7 | 3 | 23 | 1450 | 2.11 | 3 | 32 | 270 | 2.5 |
| IS、IH80-65-125 | 15 25 30 | 4.17 6.94 8.33 | 5.6 5 4.5 | 1450 | 0.42 0.48 0.51 | 0.75 | 55 71 72 | 137 | 2.5 2.5 3.0 |
| IS、IH80-65-125A | 22.4 | 6.2 | 4 | 1450 | 0.35 | 0.55 | 69 | 125 | 2.5 |
| IS、IH80-65-160 | 15 25 30 | 4.17 6.94 8.33 | 9 8 7.2 | 1450 | 0.67 0.79 0.86 | 1.5 | 55 69 68 | 168 | 2.5 2.5 3.0 |
| IS、IH80-65-160A | 23.4 | 6.5 | 7 | 1450 | 0.68 | 1.1 | 66 | 157 | 2.5 |
| IS、IH80-65-160B | 21.7 | 6 | 6 | 1450 | 0.55 | 0.75 | 64 | 146 | 2.5 |
| IS、IH80-50-200 | 15 25 30 | 4.17 6.94 8.33 | 13.2 12.5 11.8 | 1450 | 1.06 1.31 1.41 | 2.2 | 51 65 67 | 202 | 2.5 2.5 3.0 |
| IS、IH80-50-200A | 23.4 | 6.5 | 11 | 1450 | 1.10 | 1.5 | 64 | 190 | 2.5 |
| IS、IH80-50-200B | 21.8 | 6.1 | 9.5 | 1450 | 0.90 | 1.1 | 63 | 176 | 2.5 |
| IS、IH80-50-250 | 15 25 30 | 4.17 6.94 8.33 | 21 20 18.8 | 1450 | 1.75 2.27 2.52 | 3 | 49 60 61 | 252 | 2.5 2.5 3.0 |
| IS、IH80-50-250A | 23.4 | 6.5 | 17.5 | 1450 | 1.96 | 2.2 | 57 | 238 | 2.5 |
| IS、IH80-50-250B | 21.7 | 6 | 15 | 1450 | 1.60 | 2.2 | 55 | 218 | 2.5 |
| IS、IH80-50-315 | 15 25 30 | 4.17 6.94 8.33 | 32.5 32 31.5 | 1450 | 3.4 4.19 4.6 | 5.5 | 39 52 56 | 315 | 2.5 2.5 3.0 |
| IS、IH80-50-315A | 23.9 | 6.6 | 28.5 | 1450 | 3.76 | 5.5 | 49 | 301 | 2.5 |
| IS、IH80-50-315B | 22.7 | 6.3 | 25.8 | 1450 | 3.46 | 4 | 46 | 286 | 2.5 |
| IS、IH80-50-315C | 21.4 | 6 | 23 | 1450 | 3.07 | 4 | 44 | 270 | 2.5 |
| IS、IH100-80-125 | 30 50 60 | 8.33 13.9 16.7 | 6 5 4 | 1450 | 0.77 0.91 0.92 | 1.5 | 64 75 71 | 140 | 2.5 2.5 3.0 |
| IS、IH100-80-125A | 44.7 | 12.4 | 4 | 1450 | 0.68 | 1.1 | 72 | 125 | 2.5 |
| IS、IH100-80-160 | 30 50 60 | 8.33 13.9 16.7 | 9.2 8.0 6.8 | 1450 | 1.12 1.45 1.57 | 2.2 | 67 75 71 | 170 | 2.0 2.5 3.5 |
| IS、IH100-80-160A | 46.8 | 13 | 7 | 1450 | 1.24 | 1.5 | 72 | 159 | 2.5 |
| IS、IH100-80-160B | 43.3 | 12 | 6 | 1450 | 1.01 | 1.5 | 70 | 147 | 2.5 |
| IS、IH100-65-200 | 30 50 60 | 8.33 13.9 16.7 | 13.5 12.8 11.8 | 1450 | 1.84 2.33 2.61 | 4 | 60 73 74 | 203 | 2.0 2.0 2.5 |
| IS、IH100-65-200A | 46.9 | 13 | 11 | 1450 | 1.95 | 3 | 72 | 190 | 2.0 |
| IS、IH100-65-200B | 43.6 | 12.1 | 9.5 | 1450 | 1.63 | 2.2 | 69 | 177 | 2.0 |
| IS、IH100-65-250 | 30 50 60 | 8.33 13.9 16.7 | 21.3 20 19 | 1450 | 3.16 4.00 4.44 | 5.5 | 55 68 70 | 255 | 2.0 2.0 2.5 |
| IS、IH100-65-250A | 46.8 | 13 | 17.5 | 1450 | 3.38 | 4 | 66 | 239 | 2.0 |
| IS、IH100-65-250B | 43.3 | 12 | 15 | 1450 | 2.76 | 4 | 64 | 221 | 2.0 |
| IS、IH100-65-315 | 30 50 60 | 8.33 13.9 16.7 | 34 32 30 | 1450 | 5.44 6.92 7.67 | 11 | 51 63 61 | 315 | 2.0 2.0 2.5 |
| IS、IH100-65-315A | 47.7 | 13.3 | 28.5 | 1450 | 6.09 | 7.5 | 61 | 301 | 2.0 |
| IS、IH100-65-315B | 45.4 | 12.6 | 25.8 | 1450 | 5.40 | 7.5 | 59 | 286 | 2.0 |
| IS、IH100-65-315C | 42.9 | 11.9 | 23 | 1450 | 4.71 | 5.5 | 57 | 271 | 2.0 |
| IS、IH125-100-200 | 60 100 120 | 16.7 27.8 33.3 | 14.5 12.5 11.0 | 1450 | 3.83 4.48 4.79 | 7.5 | 62 76 76 | 216 | 2.5 2.5 3.0 |
| IS、IH125-100-200A | 93.5 | 26 | 11 | 1450 | 3.84 | 7.5 | 73 | 203 | 2.5 |
| IS、IH125-100-200B | 87.2 | 24.2 | 9.5 | 1450 | 3.17 | 4 | 71 | 188 | 2.5 |
| IS、IH125-100-250 | 60 100 120 | 16.7 27.8 33.3 | 21.5 20 18.5 | 1450 | 5.59 7.17 7.84 | 11 | 3 76 77 | 255 | 2.5 2.5 3.0 |
| IS、IH125-100-250A | 93.5 | 26 | 17.5 | 1450 | 6.03 | 7.5 | 74 | 239 | 2.5 |
| IS、IH125-100-250B | 86.6 | 24.1 | 15 | 1450 | 4.92 | 7.5 | 72 | 221 | 2.5 |
| IS、IH125-100-315 | 60 100 120 | 16.7 27.8 33.3 | 33.5 32 30.5 | 1450 | 9.4 11.9 13.5 | 15 | 58 73 74 | 317 | 2.5 2.5 3.0 |
| IS、IH125-100-315A | 95.5 | 26.5 | 28.5 | 1450 | 10.43 | 15 | 71 | 303 | 2.5 |
| IS、IH125-100-315B | 90.8 | 25.2 | 25.8 | 1450 | 9.37 | 11 | 68 | 288 | 2.5 |
| IS、IH125-100-315A | 85.8 | 23.8 | 23 | 1450 | 8.13 | 11 | 66 | 272 | 2.5 |
| IS、IH125-100-400 | 60 100 120 | 16.7 27.8 33.3 | 52 50 48.5 | 1450 | 16.1 21.0 23.6 | 30 | 53 65 67 | 395 | 2.5 3.0 3.0 |
| IS、IH125-100-400A | 93.5 | 26 | 44 | 1450 | 17.8 | 22 | 63 | 371 | 3.0 |
| IS、IH125-100-400B | 86.6 | 24.1 | 38 | 1450 | 14.96 | 18.5 | 60 | 345 | 3.0 |
| IS、IH150-125-250 | 120 200 240 | 33.3 55.6 66.7 | 22.5 20 17.5 | 1450 | 10.4 13.5 14.7 | 18.5 | 71 81 78 | 260 | 3.0 3.0 3.5 |
| IS、IH150-125-250A | 187 | 52 | 17.5 | 1450 | 11.44 | 15 | 78 | 243 | 3.0 |
| IS、IH150-125-250B | 173 | 48 | 15 | 1450 | 9.29 | 11 | 76 | 225 | 3.0 |
| IS、IH150-125-315 | 120 200 240 | 33.3 55.6 66.7 | 34 32 29 | 1450 1450 | 15.9 22.1 23.7 | 30 | 70 79 80 | 325 | 2.5 2.5 3.0 |
| IS、IH150-125-315A | 187 | 52 | 28 | 18.78 | 22 | 76 | 304 | 2.5 | |
| IS、IH150-125-315B | 173 | 48 | 24 | 1450 | 15.47 | 18.5 | 73 | 282 | 2.5 |
| IS、IH150-125-400 | 120 200 240 | 33.3 55.6 66.7 | 53 50 46 | 1450 1450 | 27.9 36.3 40.6 | 45 | 62 75 74 | 400 | 2.0 2.8 3.5 |
| IS、IH150-125-400A | 187 | 52 | 44 | 1450 | 30.73 | 37 | 73 | 375 | 2.8 |
| IS、IH150-125-400B | 173 | 48 | 38 | 25.19 | 30 | 71 | 348 | 2.8 | |
| IS、IH200-150-250 | 240 400 460 | 66.7 111.1 127.8 | 22.6 20 17.2 | 1450 1450 | 21.1 26.6 27.3 | 37 | 70 82 79 | 275 | 3.6 4.6 4.9 |
| IS、IH200-150-250A | 374 | 104 | 17.5 | 22.30 | 30 | 80 | 257 | 4.6 | |
| IS、IH200-150-250B | 246 | 96 | 15 | 1450 | 18.10 | 22 | 78 | 238 | 4.6 |
| IS、IH200-150-315 | 240 400 460 | 66.7 111.1 127.8 | 37 32 28.5 | 1450 1450 | 34.6 42.5 44.6 | 55 | 70 82 80 | 348 | 3.0 3.5 4.0 |
| IS、IH200-150-315A | 374 | 104 | 28 | 35.69 | 45 | 80 | 326 | 3.5 | |
| IS、IH200-150-315B | 346 | 96 | 24 | 1450 | 28.96 | 37 | 78 | 301 | 3.5 |
| IS、IH200-150-400 | 240 400 460 | 66.7 111.1 127.8 | 55 50 45 | 1450 1450 | 48.6 67.2 74.2 | 90 | 74 81 76 | 395 | 3.0 3.8 4.5 |
| IS、IH200-150-400A | 374 | 104 | 44 | 56.79 | 75 | 79 | 371 | 3.8 | |
| IS、IH200-150-400B | 346 | 96 | 38 | 1450 | 46.45 | 55 | 77 | 342 | 3.8 |
