CQB-F fluoroplastic magnetic-driving pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

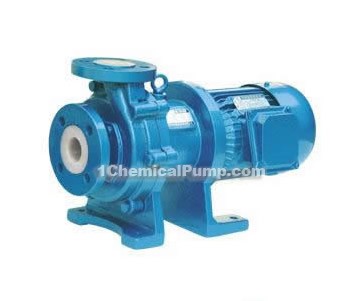

product drawing
CQB-F fluoroplastic magnetic-driving pumps
summary
Leakproof design, cancel shaft seal, utilize magnetic coupling indirect drive, completely cancel drip, without polluting location. Due to the pump flow parts choose "fluoroplastic alloy", it can connect and convey any concentration of acid, alkali, reinforcer and other corrosive meidum without damage. Working principle: driving devices adopt active magnet coupling directly installed on the motor shaft, pump chamber is completely closed, through magnetic coupling drive pumps shaft impeller rotating with magnet, with compact structure, completely energy-saving. Durable pump body structure: although wetted part is fluorine plastic, the pump body shell is metal materials, so the pump body can bear the pipe weight and mechanical shock.
usages
Excluding solid particles corrosive liquid, strong acid, strong alkali, ethanol, bleach, photography, nitric acid, muriatic acid, hydrochloric acid, acetic acid, hydrogen oxidation, acetone, four oxygen ethane, sea water, salt water and so on.
| type | flow （m3/h） |
head (m) |
NPSH (m) |
rotate speed (r/min) |
diameter (mm) | applicable temperature (℃) |
voltage (V) |
|
| inlet | outlet | |||||||
| CQB16-12-18F | 1.8 | 8 | 6.0 | 2900 | Φ16 | Φ12 | ＜80 | 220/380 |
| CQB20-14-100F | 3 | 12 | 6.0 | 2900 | Φ20 | Φ14 | ＜80 | 220/380 |
| CQB32-25-125F | 3.2 | 20 | 5.0 | 2900 | Φ32 | Φ20 | ＜80 | 380 |
| CQB40-32-115F | 6.3 | 15 | 6.0 | 2900 | Φ40 | Φ32 | ＜80 | 380 |
| CQB40-32-145F | 6.3 | 25 | 5.0 | 2900 | Φ40 | Φ32 | ＜80 | 380 |
| CQB50-40-125F | 12.5 | 20 | 3.5 | 2900 | Φ50 | Φ40 | ＜80 | 380 |
| CQB50-40-160F | 12.5 | 32 | 3.5 | 2900 | Φ50 | Φ40 | ＜80 | 380 |
| CQB65-50-125F | 25 | 20 | 4.0 | 2900 | Φ65 | Φ50 | ＜80 | 380 |
| CQB65-50-160F | 25 | 32 | 4.0 | 2900 | Φ65 | Φ50 | ＜100 | 380 |
| CQB80-65-125F | 50 | 20 | 4.0 | 2900 | Φ80 | Φ65 | ＜100 | 380 |
| CQB80-65-160F | 50 | 32 | 4.0 | 2900 | Φ80 | Φ65 | ＜100 | 380 |
