GBW concentrated sulfuric acid pump

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

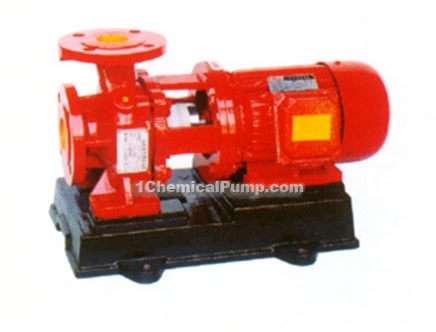

product drawing

GBW concentrated sulfuric acid pumps
GBW concentrated sulfuric acid pumps

summary

GBW concentrated sulfuric acid pump is a new ideal generation of chemical pump that designed and developed according to IS type centrifugal pump performance parameters, adopting sulfuric acid special cast steel, carbon steel two materials and excellent hydraulic model. This pump shaft seal uses externally mounted high quality mechanical seal, dynamic and static ring use new cemented carbide or ceramic, wear resistance, no leakage and long service life. Suitable for chemical, metallurgical, environment protection industry for conveying all types of corrosive concentrated sulfuric acid.

type meaning

GBW 25-125
GB – concentrated sulfuric acid pump
W – horizontal type
25 – inlet and outlet diameter(mm)
125 – impeller diameter(mm)

technical parameters

flow:4~550m3/h;
head:12.5~50m;
rotate speed:1450、2900r/min;
power:1.1~55KW;
inlet diameter:25~250mm。

type flow head rotate speed motor power
m3/h m r/min Kw
GBW25-125 4 20 2900 1.1
GBW25-160 4 32 2900 2.2
GBW32-125 5 20 2900 1.1
GBW32-160 5 32 2900 2.2
GBW40-125 6.3 20 2900 1.5
GBW40-160 6.3 32 2900 3
GBW40-200 6.3 50 2900 5.5
GBW50-100 12.5 12.5 2900 1.5
GBW50-125 12.5 20 2900 2.2
GBW50-160 12.5 32 2900 4
GBW50-200 12.5 50 2900 7.5
GBW65-100 25 12.5 2900 2.2
GBW65-125 25 20 2900 4
GBW65-160 25 32 2900 5.5
GBW65-200 25 50 2900 11
GBW80-100 50 12.5 2900 4
GBW80-125 50 20 2900 7.5
GBW80-160 50 32 2900 11
GBW80-200 50 50 2900 18.5
GBW100-100 100 12.5 2900 7.5
GBW100-125 100 20 2900 15
GBW100-160 100 32 2900 18.5
GBW100-200 100 50 2900 30
GBW125-100 160 12.5 2900 15
GBW125-125 160 20 2900 18.5
GBW125-160 160 32 2900 30
GBW125-200 160 50 2900 45
GBW150-125 160 20 2900 18.5
GBW150-160 160 32 2900 30
GBW200-200 200 12.5 1450 18.5
GBW200-250 200 20 1450 22
GBW250-250 550 20 1450 55
