FJX type forced circulation pump

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

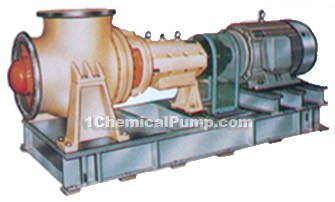

product drawing

FJX type forced circulation pumps
FJX type forced circulation pumps

introduction

FJX type series evaporative circulating pump is large flow, low head axial-flow pump, special used for evaporator forced circulation in ammonium phosphate, phosphoric acid, vacuum salt production, alumina, caustic soda, light industries, etc. It also can be circulating pump for crystllizer and reactor.
performance parameters
flow scope:300-12000m3/h
head scope:2-4m
working pressure:≤1Mpa.G
working temperature:≤170°C
Note: When ordering, users need to provide detailed data table, according to users required flow, head, medium characteristics, we will recommend the reasonable type.

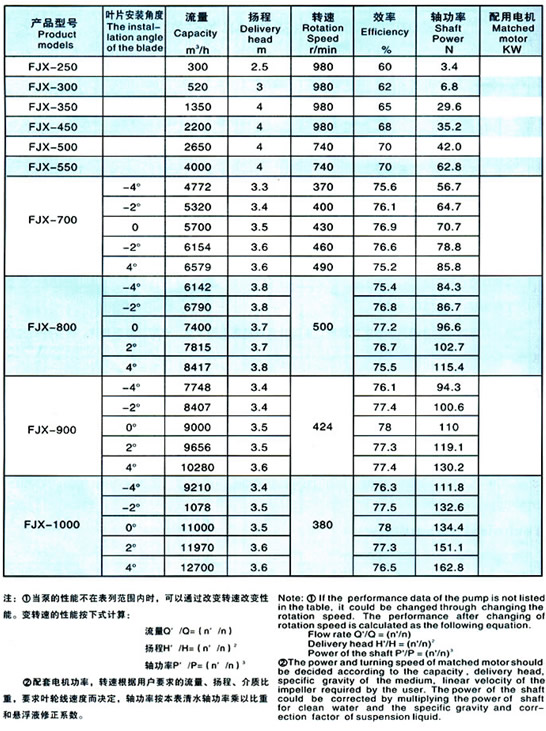

table of standard performance

table of standard performance
