FV PVDF pump

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

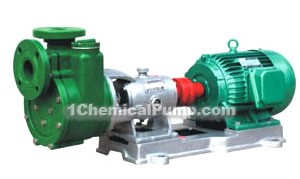

product drawing

FV PVDF pumps
FV PVDF pumps

introductions

FV/P energy-saving anti-corrosion centrifugal pump, FV/P (Z) self-suction pump, using PVDF, CFR-PP, one-time injecting plastic molding. High mechanical strength and strong corrosion resistance, self-suction pump structure has it own scientificity, pump chamber has imbibition liquid chamber, storage room, liquid check valves, air separation chamber, reflow hole. Only perfuse fluid before the first starting, and do not need to repeat from now on, when suction medium, liquid can be intermittence, break liquid can continue to suction within 15 minutes coming liquid, mechanical seal is not need for additional cooling water cooling, operation is simple and safe without leakage, is the best product that replaces submerged pump. PVDF material: good air-tightness, non-toxic, non-polluting, antioxidizing not aging, good mechanical properties, strong oxidizer, aromatic solvents, halogen, temperature -40~120℃. CFR - RP material: non-toxic, non-polluting, acid and alkali resistant salt, working temperature -14~80℃.

main performance parameters

type inlet and outlet diameter mm flow m3/h head m efficiency % suction m rotate speed r/min motor power KW
32FV/PD-11 32/25 4 11 47 4 2900 0.75
40FV/PD-20 40/32 11 20 52 6 2900 1.5
50FV/PD-22 50/40 13 22 52 6 2900 2.2
65FV/P-25 65/50 20 25 54 6 2900 4
80FV/P-30 80/65 50 30 67 4 2900 7.5
100FV/P-40 100/80 100 40 70 4 2900 22
40FV/PZ-20 40/32 11 20 49 6 2900 1.5
50FV/PZ-22 50/40 13 22 49 6 2900 2.2
65FV/PZ-25 65/50 20 25 53 6 2900 4
80FV/PZ-30 80/65 50 30 67 4 2900 7.5
100FV/PZ-40 100/80 100 40 71 4 2900 18.5
