FS type FRP centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

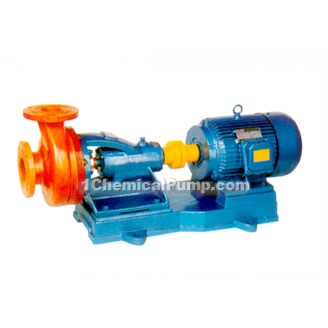

product drawing
FS type FRP centrifugal pumps
summary
FS horzontal FRP centrifugal pump has advantages of light weight, high strength, no deformation, temperature resistance, corrosion resistance, etc. In part of anti-corrosion can replace valuable metal containing stainless steel, titanium alloy, etc. Shaft seal: adopt WB2 external mounted F4 bellows mechanical seal, sealing performance is reliable, and with long service life. Pump drive and rotate direction: through jaw resilient coupling directly driven by motor, it seems clockwise from the motor end. This pump is mainly used in petrochemical, metallurgical, printing, dyeing, pesticides, fertilizers, pharmacy, rare earth industry, chemical fertilizer, it is the necessary ideal equipment in transporting non-containing solid particles and hard to crystallize, no more than 100 degrees temperature of all kinds of oxidizing acid (hydrochloric acid, dilute sulphuric acid, formic acid, acetic acid, butyrate etc.) corrosive medium.
| type | flow（Q） | head（H） m | rotate speed（n） rpm | power NKW | power | impeller（D） mm | suction up height HS | ||
| m3/h | L/s | shaft | motor | ||||||
| FS50-25-18 | 3.96 6.56 720 | 1.10 1.82 2.00 | 18 15 12 | 2900 | 1.45 1.53 1.58 | 2.2 | 13 17 15 | 132 | 6 |
| FS50-32-16 | 4.36 7.2 9.72 | 1.10 1.82 2.00 | 16 13 10 | 2900 | 1.46 1.60 1.70 | 2.2 | 13 16 16 | 135 | 6 |
| FS50-40-20 | 7.20 13.1 14.4 | 2.00 3.64 4.00 | 20 16 12 | 2900 | 2.02 2.24 2.52 | 3 | 18 25 18.5 | 140 | 6 |
| FS65-40-30 | 7.92 14.4 19.8 | 2.2 4 5.5 | 30 25 21 | 2900 | 1.64 2.40 3.70 | 5.5 | 9 41 31 | 166 | 5 |
| FS65-50-25 | 25.0 35.0 45.0 | 7 9.7 12.5 | 26 25 22 | 2900 | 2.83 3.35 3.87 | 5.5 | 63 71 70 | 168 | 5 |
| FS80-50-35 | 35.0 45.0 55.0 | 8.3 12.5 15.1 | 35 32 28 | 2900 | 4.94 5.59 6.33 | 7.5 | 58 70 66 | 182 | 5 |
| FS80-50-35A | 25.0 35.0 45.0 | 7 9.7 12.5 | 26 25 22 | 2900 | 2.83 3.35 3.87 | 5.5 | 63 71 70 | 168 | 5 |
| FS80-65-30 | 30.0 49.0 60.0 | 8.3 13.6 6.7 | 30 24 22 | 2900 | 4.45 5.53 6.10 | 7.5 | 55 58 59 | 182 | 4 |
| FS100-65-35 | 29.6 49.1 62.4 | 8.2 13.6 17.2 | 35 35 28 | 2900 | 5.12 6.2 7.35 | 11 | 55 65 65 | 180 | 4 |
| FS100-80-35 | 56 92.8 110 | 15.5 25.5 30.5 | 35 29 25 | 2900 | 8.45 10.1 10.8 | 15 | 63 73 69 | 184 | 4 |
