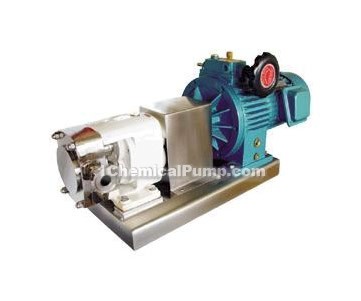

HS3A stainless steel anti-corrosion centrifugal pump(rotor pump)
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
HS3A stainless steel anti-corrosion centrifugal pump(rotor pumps)
introductions
All contact with the medium (materials) parts are made of stainless steel (SUS304, AISl316 material, 316L) completely conform to the hygiene standards.
Suitable for conveying high viscosity, density and any media (material) containing particles.
Applicable temperature: -30℃ to +200℃.
High pressure , suitable for quantitatively conveying high resistance and long distance.
Low rotate speed, generally between 200rpm to 600rpm, the materials conveyed by it will keep original material quality, without any chemical reactions.
No contact between rotor and rotor, long-term use will also no wear, smooth operation, low noise.
Disassembly is easy, convenient washing, maintain clean sanitation.
main usages
Milk and cream and yogurt product, cheese, ice-cream and whey block.
Drink beer wort and feeding, yeast, soda water, fruit, juice concentrate.
Food products, fruit and vegetable mud ketchup, pudding, paste jams, jellies, flavorings, fruit, sweet fillings, yeast and salad sauce, bread, pastry, worms, meat and edible oil and net.
Sugar syrup, fruit, chocolate cream filling.
Cosmetics face cream and gel, hair lotions, hairstyle, oils.
Drug product pills, paste, emulsion, ointment.
Chemical fat, solvents, resin and polymer, dye.
performance parameters
| type | 100r displacement（L） | proposal speed regulating scope （rpm） | corresponding flow （L/H） | motor power （km） |
| HS3A-6 | 6 | 200～500 | 650～1600 | 1.5 |
| HS3A-8 | 8 | 200～500 | 850～21600 | 1.5 |
| HS3A-12 | 12 | 200～500 | 1300～3200 | 2.2 |
| HS3A-20 | 20 | 200～500 | 2100～5400 | 3 |
| HS3A-30 | 30 | 200～400 | 3200～6400 | 4 |
| HS3A-36 | 36 | 200～400 | 3800～7600 | 5.5 |
| HS3A-52 | 52 | 200～400 | 5600～11000 | 5.5 |
| HS3A-66 | 66 | 200～400 | 7100～14000 | 7.5 |
| HS3A-78 | 78 | 200～400 | 9000～18000 | 7.5 |
| HS3A-100 | 100 | 200～400 | 11000～22000 | 11 |
| HS3A-135 | 135 | 200～400 | 15000～30000 | 11 |
