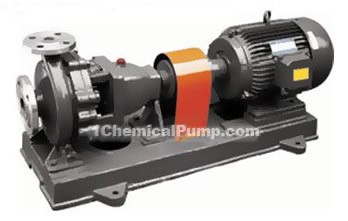

product drawing
IR insulation chemical pumps
summary
IR heat insulation pump is single stage single suction cantilever centrifugal pump series, according to the international standard ISO2858 design and ISO5199 / DIS manufacturing, is the derived product of IH chemical centrifugal pump, spare parts size has achieved standardized energy-conserving high-efficient products, mainly used for chemical, chemical fiber, petroleum, food, pharmaceutical and other industries conveying solution medium freezing point, (or crystallization temperature) corrosive high tempeature liquid.
features
IR thermal insulation chemical pump major flow parts have hollow interlining, and setting for steam, hot water, heat oil, soda and other conveying liquid and pump for multiple cycle, thermal insulation has various modes to connecting with external insulation system. Design pressure is 1.6 Mpa temperature: no more than 250 ° c: Flow 3.4-460m3 / h head: h = 3.6-132m, rotate speed 1450-2900r/min
usages
This pump is suitable for chemical medium with solidification crystalline under ordinary temperatures, suitable for chemical vapors point need cooling medium, also applies to cold plateau area medium temperature -80~+250℃, conveying solution medium freezing point (or crystallization point) corrosive liquid.
| type | inlet← | outlet→ | flow | head | equipped motor | impeller diameter mm | |
| inletXoutletXimpeller (mm)(mm)(mm) | mm | mm | (m3/h) | (m) | rotate speed r/min | power P | |
| IR50-32-125 | 50 | 32 | 12.5 | 20 | 2900 | 2.2 | 125 |
| IR50-32-125 | 50 | 32 | 6.3 | 5 | 1450 | 0.55 | 125 |
| IR50-32-160 | 50 | 32 | 12.5 | 32 | 2900 | 3 | 160 |
| IH50-32-160 | 50 | 32 | 6.3 | 8 | 1450 | 0.55 | 160 |
| IR50-32-200 | 50 | 32 | 12.5 | 50 | 2900 | 5.5 | 200 |
| IR50-32-200 | 50 | 32 | 6.3 | 12.5 | 1450 | 0.75 | 200 |
| IR50-32-250 | 50 | 32 | 12.5 | 80 | 2900 | 11 | 250 |
| IR50-32-250 | 50 | 32 | 6.3 | 20 | 1450 | 1.5 | 250 |
| IR65-50-125 | 65 | 50 | 25 | 20 | 2900 | 3 | 125 |
| IR65-50-125 | 65 | 50 | 12.5 | 5 | 1450 | 0.55 | 125 |
| IR65-50-160 | 65 | 50 | 25 | 32 | 2900 | 5.5 | 160 |
| IR65-50-160 | 65 | 50 | 12.5 | 8 | 1450 | 0.75 | 160 |
| IR65-40-200 | 65 | 40 | 25 | 50 | 2900 | 11 | 200 |
| IR65-40-200 | 65 | 40 | 12.5 | 12.5 | 1450 | 1.1 | 200 |
| IR65-40-250 | 65 | 40 | 25 | 80 | 2900 | 15 | 250 |
| IR65-40-250 | 65 | 40 | 12.5 | 20 | 1450 | 2.2 | 250 |
| IR65-40-315 | 65 | 40 | 25 | 125 | 2900 | 30 | 315 |
| IR65-40-315 | 65 | 40 | 12.5 | 32 | 1450 | 4 | 315 |
| IR80-65-125 | 80 | 65 | 50 | 20 | 2900 | 5.5 | 125 |
| IR80-65-125 | 80 | 65 | 25 | 5 | 1450 | 0.75 | 125 |
| IR80-65-160 | 80 | 65 | 50 | 32 | 2900 | 7.5 | 160 |
| IR80-65-160 | 80 | 65 | 25 | 8 | 1450 | 1.1 | 160 |
| IR80-50-200 | 80 | 50 | 50 | 50 | 2900 | 15 | 200 |
| IR80-50-200 | 80 | 50 | 25 | 12.5 | 1450 | 2.2 | 200 |
| IR80-50-250 | 80 | 50 | 50 | 80 | 2900 | 30 | 250 |
| IR80-50-250 | 80 | 50 | 25 | 20 | 1450 | 4 | 250 |
| IR80-50-315 | 80 | 50 | 50 | 125 | 2900 | 45 | 315 |
| IR80-50-315 | 80 | 50 | 25 | 32 | 1450 | 5.5 | 315 |
| IR100-80-125 | 100 | 80 | 100 | 20 | 2900 | 11 | 125 |
| IR100-80-125 | 100 | 80 | 50 | 5 | 1450 | 1.5 | 125 |
| IR100-80-160 | 100 | 80 | 100 | 32 | 2900 | 15 | 160 |
| IR100-80-160 | 100 | 80 | 50 | 8 | 1450 | 2.2 | 160 |
| IR100-65-200 | 100 | 65 | 100 | 50 | 2900 | 30 | 200 |
| IR100-65-200 | 100 | 65 | 50 | 12.5 | 1450 | 4 | 200 |
| IR100-65-250 | 100 | 65 | 100 | 80 | 2900 | 45 | 250 |
| IR100-65-250 | 100 | 65 | 50 | 20 | 1450 | 5.5 | 250 |
| IR100-65-315 | 100 | 65 | 100 | 125 | 2900 | 75 | 315 |
| IR100-65-315 | 100 | 65 | 50 | 32 | 1450 | 11 | 315 |
| IR125-100-200 | 125 | 100 | 200 | 50 | 2900 | 45 | 200 |
| IR125-100-200 | 125 | 100 | 100 | 12.5 | 1450 | 7.5 | 200 |
| IR125-100-250 | 125 | 100 | 200 | 80 | 2900 | 75 | 250 |
| IR125-100-250 | 125 | 100 | 100 | 20 | 1450 | 11 | 250 |
| IR125-100-315 | 125 | 100 | 200 | 125 | 2900 | 110 | 315 |
| IR125-100-315 | 125 | 100 | 100 | 32 | 1450 | 18.5 | 315 |
| IR125-100-400 | 125 | 100 | 100 | 50 | 1450 | 30 | 400 |
| IR150-125-250 | 150 | 125 | 200 | 20 | 1450 | 18.5 | 250 |
| IR150-125-315 | 150 | 125 | 200 | 32 | 1450 | 30 | 315 |
| IR150-125-400 | 150 | 125 | 200 | 50 | 1450 | 55 | 400 |
| IR200-150-250 | 200 | 150 | 400 | 20 | 1450 | 37 | 250 |
| IR200-150-315 | 200 | 150 | 400 | 32 | 1450 | 55 | 315 |
| IR200-150-400 | 200 | 150 | 400 | 50 | 1450 | 90 | 400 |
| IR250-200-315 | 250 | 200 | 550 | 32 | 1450 | 75 | 315 |
| IR250-200-450 | 250 | 200 | 600 | 60 | 1450 | 160 | 450 |
