JINB type double suction melt urea pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing

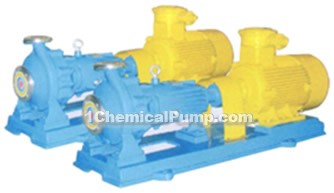

JINB type double suction melt urea pumps
introductions
JINB type third generation melt urea pump is single stage signle suction cantilever centrifugal pump. It is applicable to transmit molten urea in fertilizer, can also be used for transporting excluding suspended particles other corrosive liquids. Allowed medium temperature: 20 ~ 180 degrees Celsius, pump is level pumping, radial top side to exhaust, there are heat insulation sleeves in the front of the pump, doulbe jackets can hold steam heat preservation at 0.59Mpa, 170 Celsius. Users can select different materials based on the media corrosive performance degree, types and different flow, head can be controlled.
application
flow：200m3/h
head：132m
rotate speed：2900r/min
