JMZ stainless steel self-priming wine pump(self-priming chemical pump)
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

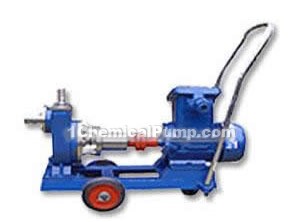

product drawing
JMZ stainless steel self-priming wine pump(self-priming chemical pumps)
summary
Our company specializes in producing stainless steel self-priming wine pump, chemical pump, according to user's new requirements, adopts new mechanical seal assembly, installs explosion-proof, without leakage, JMZ self-priming wine pump is suitable for conveying (-35～+120℃) various alcohol, beverage, dairy product, pharmacy, gasoline, solvent oil, sugar, etc. FMZ self-priming chemical pump is suitable for conveying (-35～+120℃) thick strarch, acid and alkali, salt chemical liquids.
features
The pump has compact structure, simple operation, good self-priming performance, small volume, light weight, stable performance, no bottom valve, starting without lead irrigation, etc. It is domestic new generation product, has wide applicable market and development prospect. This pump performance range: flow is 3M3/h~190M3/h, head is 22m-60m, diameter: 25mm-150mm.
product application
Excluding solid particles corrosive liquid, strong acid, strong alkali, ethanol, bleach, photography, nitric acid, muriatic acid, hydrochloric acid, acetic acid, hydrogen oxidation, acetone, four oxygen ethane, sea water, salt water and so on.
| Conveying wine, beverage, gasoline, dairy models | main performance parameter | Conveying acid, alkali, underflow and high temperature liquid models | equipped power (KW) | |||||
| inlet mm | outlet mm | flow m3/h | head m | suction m | rotate speed r/min | |||
| 25 JMZ- 22 | 25 | 25 | 3 | 22 | 5 | 2900 | 25 FMZ- 22 | 1.1 |
| 25 JMZ- 30 | 25 | 25 | 3 | 30 | 6 | 2900 | 25 FMZ- 30 | 1.5 |
| 40 JMZ- 22 | 40 | 25 | 6 | 22 | 5 | 2900 | 40 FMZ- 22 | 1.5 |
| 40 JMZ- 30 | 40 | 25 | 6 | 30 | 6 | 2900 | 40 FMZ- 30 | 2.2 |
| 40 JMZ- 40 | 40 | 25 | 6 | 40 | 6 | 2900 | 40 FMZ- 40 | 3 |
| 50 JMZ- 22 | 50 | 40 | 12 | 22 | 5 | 2900 | 50 FMZ- 22 | 2.2 |
| 50 JMZ- 30T | 50 | 50 | 20 | 30 | 6 | 2900 | 50 FMZ- 30T | 4 |
| 50 JMZ- 40 | 50 | 40 | 12 | 40 | 6 | 2900 | 50 FMZ- 40 | 4 |
| 65 JMZ- 22 | 65 | 50 | 24 | 22 | 5 | 2900 | 65 FMZ- 22 | 4 |
| 65 JMZ- 30T | 65 | 65 | 30 | 30 | 6 | 2900 | 65 FMZ- 30T | 5.5 |
| 80 JMZ- 22 | 80 | 65 | 48 | 22 | 5 | 2900 | 80 FMZ- 22 | 5.5 |
| 80 JMZ- 30 | 80 | 65 | 48 | 30 | 5 | 2900 | 80 FMZ- 30 | 7.5 |
| 100 JMZ- 22 | 100 | 80 | 80 | 22 | 5 | 2900 | 125 FMZ- 18 | 11 |
| 100 JMZ- 30 | 100 | 80 | 100 | 30 | 5 | 2900 | 100 FMZ- 30 | 15 |
| 150 JMZ- 22 | 150 | 125 | 160 | 22 | 5 | 2900 | 150 FMZ- 22 | 15 |
| 150 JMZ- 30 | 150 | 125 | 160 | 30 | 5 | 2900 | 150 FMZ- 30 | 22 |
| 200 JMZ- 22 | 200 | 150 | 200 | 22 | 5 | 1450 | 200 FMZ- 22 | 18.5 |
| 200 JMZ- 30 | 200 | 150 | 200 | 30 | 5 | 1450 | 200 FMZ- 30 | 30 |
