LSB series concentrated sulfuric acid submerged pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
LSB series concentrated sulfuric acid submerged pumps
performance parameter
flow：10～400m3/h
head：50m
rotate speed：1450r/min
introduction
LJYA pulp pump is single stage vertical cantilever centrifugal submerged pump. Impeller is half open, before and behind the impeller equipped with wear-resisting gland, widely used in conveying media that containing below 30% solid particles and viscosity below 200CP corrosion interaction in chemical process. Especially suitable for conveying phosphoric acid, phosphate slurry, etc.
Medium is below 110 degrees. If you need to convey higher temperature medium, should consider using cooling water to cool bearing.
Properties scope: flow Q = 10-400m3 / h head h = 50m

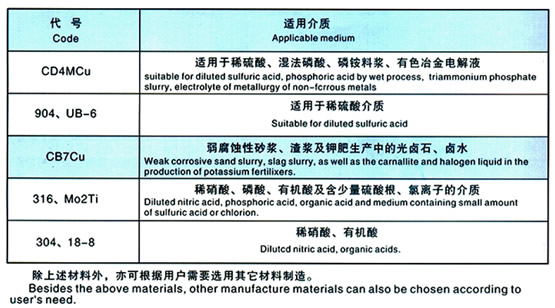

Main manufacture materials and applicable nedium

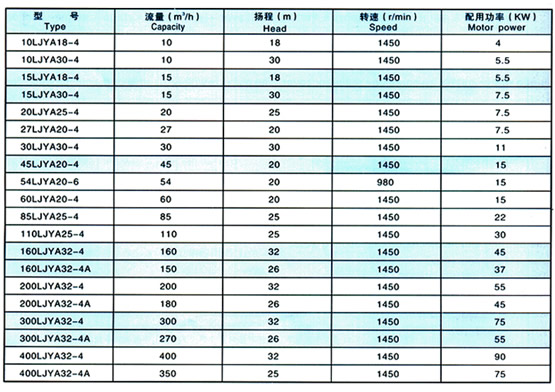

performance parameter chart
