S-type FRP centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

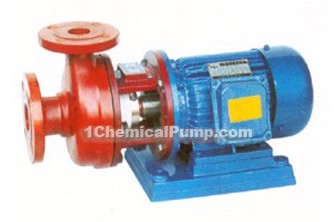

product drawing
S-type FRP centrifugal pumps
summary
S-type FRP centrifugal pump is single stage single suction cantilever structure new energy-saving pump, medium flowing parts adopt modified phenolic FRP through high temperature and high pressure process, with strong corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation, etc. Advanced design and selection, simple structure, balanced operation, reliable performance, effcient and low consumption, convenient maintenance, its overall technical level is in domestic leading position, is the ideal pump that in anti-corrosion field at present stage. It is widely used in chemical, petrochemical, pharmaceutical, cosmetic, chemical fiber, water treatment, machinery, metallurgy, environment protection and other industries anticorrosion flied
type meaning
S 40 × 32 – 20
S – S type FRP centrifugal pump
40 – inlet diameter(mm)
32 – outlet diameter(mm)
20 – design head(m)
technical parameter
flow：3.2-50m3/h；
head：12.5-32m；
rotate speed：2900r/min；
power：0.75-7.5KW；
diameter：25-80mm。
| type | flow | head | rotate speed | equipped power |
| m3/h | m | r/min | kw | |
| S25×25-12.5 | 3.2 | 12.5 | 2900 | 0.75 |
| S40×32-20 | 6.3 | 20 | 2900 | 1.1 |
| S40×32-32 | 6.3 | 32 | 2900 | 2.2 |
| S50×40-20 | 12.5 | 20 | 2900 | 2.2 |
| S50×32-32 | 12.5 | 32 | 2900 | 4 |
| S65×50-20 | 25 | 20 | 2900 | 3 |
| S65×50-25 | 25 | 25 | 2900 | 3 |
| S65×50-32 | 25 | 32 | 2900 | 5.5 |
| S80×65-32 | 50 | 32 | 2900 | 7.5 |
