WB type vortex pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

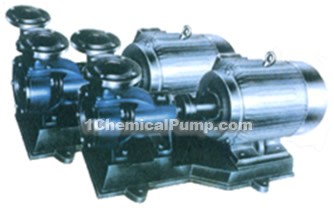

product drawing
WB type vortex pumps
introduction
flow：0.36～16.9m3/h
head：15-135m
rotate speed：2900r/min
application
1. WB type vortex pump is used to transport excluding solid particle liquids that temperature is -20℃-+120℃, viscosity is no more than 5 ° E, corrosive and non-corrosive.
2. WB type vortex pumps are ten types: specific for 20WB - 20, 25WB - 25, 32WB - 30, 40WB - 40, WB - 20, 25WB - 25, 32WB - 30, 40WB - 40, 50WB - 45, 65WB - 50, 20WB - 65, 25WB - 70, 32WB - 75, 40WB - 90. all are single stage cantilever vortex pumps.
3. WB type vortex pumps flow parts materials are HT20-40, aluminum cast iron, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti four kinds. (respectively using material code H, J, B and M)
4. WB type vortex pumps sealing forms have packing soft sealing and signle mechanical seal. Besides WB and WM type pump uses single mechanical seal, all other pumps adopt soft packing seal when delivery. If users need to other forms of shaft seals, pls inform when ordering

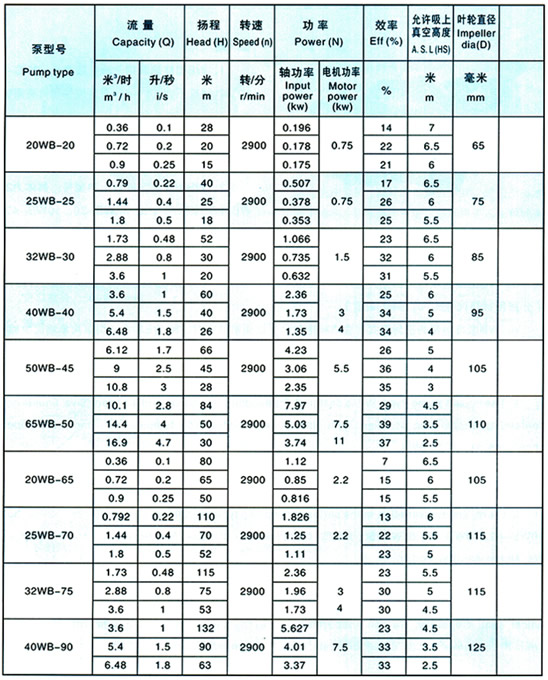

specific parameters
