ZA, ZAO, ZE series petroleum chemical process pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

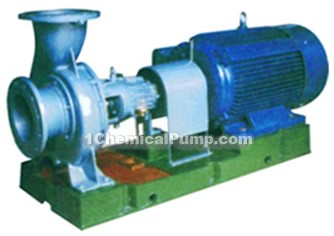

product drawing
ZA, ZAO, ZE series petroleum chemical process pumps
summary
flow：1.6-2600m3/h
head：5-300m
rotate speed：1450～2900
ZA, ZAO, ZE petroleum chemical process pump is designed according to API160 and VDMA24297 (light/medium) specification
applicable scope：
This pump is suitable for conveying clean or contain grain fluid, low or high temperature liquid, neutral or corrosive liquid
main usages：
Oil refineries, petroleum chemical industry, coal processing industry and cryogenic engineering.
Chemical industry, paper-making, pulp, sugar making and common process industries.
Water supply plant, desalination plant
Heating and air conditioning system
power plant
Environmental protection engineering
Ships and offshore industry, etc
used parameters：
diameter 25-400mm
flow can reach 2600m3/h
head can reach 250m
working pressure can reach 4.6MPa
working temperature -20℃~+180℃
centre support -20℃~+450℃
Dimensions & constructral diagram
