ZAK petrochemical process pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

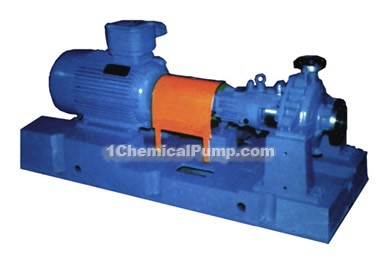

product drawing
ZAK petrochemical process pumps
summary
ZA (K) type petrochemical process pump is single stage single suction cantilever vortex shell pump, product standard API610, VDMA24297 (light/medium), pump body is supported by legs, signle suction impeller, axial suction and radial eduction. The axial force adopts forth and back ring and balance hole for hydraulic balance. Shaft seal adopts mechanical seal, can use single or double ends face balance cartridge, also can use packing seal. Mechanical seals and equipped with cooling, flushing, sealing liquid system, sealing piping system according to the API standard. I Flange is designed according to GB, DIN, ANSI standard.
features
Wide performance range, diverse forms, shaft seal adopts single or double end mechanical seal, equipped with cooling, flushing or sealing liquid system, stainless steel materials have 304,304 L, 316, 316L, CD - 4Mcu, 904,904 L, Hamiltonian alloy, etc, temperature is -50~+200℃, flow is 3-3-2600m3 / h head 3-260m rotate speed 1450-2900r/min
usages
ZAK petrochemical process pump is suitable for conveying clean or contain a small amount of particles liquid, low or high temperature liquid, neutral or corrosive liquid. Applicable to oil refining and petrochemical industry, coal processing, and cryogenic engineering, papermaking, metallurgy, medicine, synthetic fiber, power, environmental protection, etc.
specific parameters
| type | impeller form | 2900r/min rotate speed | 1450 r/min rotate speed | ||||||||
| flow Q (m3/h) |
head H (m) |
equipped motor（KW） | flow Q (m3/h) |
head H (m) |
equipped motor（KW） | ||||||
| medium density（g/cm3） | medium density（g/cm3） | ||||||||||
| 1 | 1.35 | 1.84 | 1 | 1.35 | 1.84 | ||||||
| 40-25-200 | A | 11.5 | 49 | 5.5 | 7.5 | 11 | 5.8 | 12 | 1.1 | 1.1 | 1.5 |
| B | 10.5 | 42 | 4 | 5.5 | 7.5 | 5.4 | 11 | 0.75 | 1.1 | 1.1 | |
| C | 9 | 36 | 3 | 4 | 5.5 | 4.6 | 8.5 | 0.75 | 0.75 | 1.1 | |
| D | 7.5 | 28 | 2.2 | 3 | 4 | 4 | 6.5 | 0.75 | 0.75 | 1.1 | |
| 40-25-250 | A | 12.5 | 78 | 11 | 15 | 18.5 | 6.3 | 19.5 | 1.5 | 2.2 | 3 |
| B | 12.2 | 72 | 7.5 | 11 | 15 | 6.1 | 18 | 1.5 | 2.2 | 2.2 | |
| C | 11.7 | 60 | 5.5 | 7.5 | 11 | 5.9 | 15 | 1.5 | 1.5 | 2.2 | |
| D | 10.8 | 46 | 5.5 | 7.5 | 7.5 | 5.4 | 11.5 | 1.1 | 1.5 | 1.5 | |
| 40-25-315 | A | 20 | 130 | 30 | 37 | 45 | 10 | 32 | 3 | 4 | 5.5 |
| B | 18.8 | 115 | 22 | 30 | 45 | 9.3 | 29 | 3 | 4 | 5.5 | |
| C | 17.3 | 97 | 22 | 30 | 37 | 8.7 | 24 | 2.2 | 3 | 4 | |
| D | 15.3 | 74 | 15 | 22 | 30 | 7.6 | 18.5 | 2.2 | 2.2 | 3 | |
| 80-40-160 | A | 28 | 33 | 5.5 | 7.5 | 11 | 14 | 8 | 1.1 | 1.1 | 1.5 |
| B | 25.6 | 18 | 5.5 | 7.5 | 7.5 | 13 | 7 | 1.1 | 1.1 | 1.5 | |
| C | 22 | 11 | 4 | 5.5 | 5.5 | 11 | 5.5 | 0.75 | 1.1 | 1.1 | |
| D | 20 | 16 | 2.2 | 3 | 4 | 9.5 | 4.5 | 0.75 | 0.75 | 1.1 | |
| 80-40-200 | A | 29 | 53 | 11 | 15 | 18.5 | 14.5 | 13 | 1.5 | 2.2 | 3 |
| B | 26 | 47 | 7.5 | 11 | 15 | 13 | 11.5 | 1.1 | 1.5 | 2.2 | |
| C | 22 | 39 | 5.5 | 7.5 | 11 | 11.5 | 9 | 1.1 | 1.1 | 1.5 | |
| D | 18 | 20 | 4 | 5.5 | 7.5 | 9.5 | 7 | 1.1 | 1.1 | 1.1 | |
| 80-40-250 | A | 32 | 78 | 18.5 | 22 | 30 | 16 | 19.5 | 3 | 4 | 5.5 |
| B | 30 | 72 | 15 | 18.5 | 30 | 15 | 18 | 2.2 | 3 | 4 | |
| C | 24 | 60 | 11 | 15 | 18.5 | 12.5 | 14 | 1.5 | 2.2 | 3 | |
| D | 21 | 47 | 7.5 | 11 | 15 | 10.5 | 11 | 1.1 | 1.5 | 2.2 | |
| 80-40-315 | A | 42 | 115 | 37 | 45 | 75 | 21 | 29 | 5.5 | 7.5 | 11 |
| B | 40 | 107 | 30 | 45 | 55 | 20 | 26.5 | 5.5 | 7.5 | 11 | |
| C | 34 | 81 | 22 | 30 | 45 | 17.5 | 20 | 4 | 5.5 | 7.5 | |
| D | 29 | 61 | 15 | 22 | 30 | 15 | 15 | 3 | 4 | 5.5 | |
| 80-50-160 | A | 50 | 34 | 11 | 15 | 15 | 25 | 8.4 | 1.5 | 2.2 | 2.2 |
| B | 45 | 29 | 7.5 | 11 | 15 | 22.5 | 7 | 1.5 | 1.5 | 2.2 | |
| C | 38 | 22 | 5.5 | 7.5 | 11 | 19 | 5.5 | 1.1 | 1.5 | 1.5 | |
| D | 31 | 17 | 3 | 4 | 5.5 | 16.5 | 4 | 0.75 | 1.1 | 1.1 | |
| 80-50-200 | A | 62 | 52 | 18.5 | 22 | 30 | 31 | 13 | 3 | 3 | 4 |
| B | 56 | 46 | 15 | 18.5 | 22 | 28.5 | 11.5 | 2.2 | 3 | 4 | |
| C | 49 | 37 | 11 | 15 | 18.5 | 25 | 9 | 1.5 | 2.2 | 3 | |
| D | 43 | 28 | 7.5 | 11 | 15 | 22 | 7 | 1.1 | 1.5 | 2.2 | |
| 80-50-250 | A | 70 | 82 | 30 | 37 | 55 | 35 | 20 | 4 | 5.5 | 7.5 |
| B | 66 | 75 | 30 | 37 | 45 | 33 | 18.5 | 4 | 5.5 | 7.5 | |
| C | 60 | 60 | 22 | 30 | 37 | 30 | 15 | 3 | 4 | 5.5 | |
| D | 50 | 45 | 15 | 18.5 | 22 | 26 | 11 | 2.2 | 3 | 3 | |
| 100-50-315 | A | 87 | 115 | 55 | 75 | 110 | 44 | 28 | 11 | 11 | 15 |
| B | 80 | 100 | 45 | 75 | 90 | 40 | 24 | 7.5 | 11 | 15 | |
| C | 70 | 78 | 37 | 45 | 55 | 35 | 19 | 5.5 | 7.5 | 11 | |
| D | 57 | 57 | 22 | 30 | 37 | 30 | 14 | 3 | 4 | 5.5 | |
| 100-50-400 | A | 82 | 194 | 110 | 160 | 200 | 41 | 48 | 15 | 22 | 30 |
| B | 78 | 175 | 90 | 132 | 160 | 39 | 43 | 15 | 18.5 | 22 | |
| C | 70 | 140 | 75 | 90 | 132 | 35 | 34 | 11 | 15 | 18.5 | |
| D | 60 | 102 | 45 | 75 | 90 | 30 | 25 | 7.5 | 11 | 15 | |
| 100-80-160 | A | 94 | 32 | 15 | 18.5 | 30 | 47 | 8 | 2.2 | 3 | 4 |
| B | 85 | 28 | 11 | 15 | 18.5 | 42 | 7 | 2.2 | 2.2 | 3 | |
| C | 76 | 23 | 11 | 11 | 15 | 38 | 5.5 | 1.5 | 2.2 | 2.2 | |
| D | 66 | 17 | 5.5 | 7.5 | 11 | 34 | 4 | 1.1 | 1.1 | 1.5 | |
| 150-150-315 | A | 442 | 125 | 250 | 355 | 450 | 220 | 32.5 | 30 | 45 | 55 |
| B | 430 | 120 | 220 | 315 | 400 | 210 | 30 | 30 | 37 | 55 | |
| C | 372 | 94 | 160 | 220 | 315 | 180 | 24 | 22 | 30 | 37 | |
| D | 310 | 68 | 90 | 132 | 160 | 150 | 17 | 15 | 18.5 | 22 | |
| 150-150-400 | A | 520 | 205 | 400 | 500 | 710 | 260 | 51 | 55 | 75 | 110 |
| B | 498 | 190 | 355 | 450 | 630 | 250 | 48 | 55 | 75 | 90 | |
| C | 453 | 151 | 280 | 355 | 500 | 225 | 38 | 37 | 55 | 75 | |
| D | 400 | 113 | 200 | 280 | 355 | 200 | 28 | 30 | 37 | 55 | |
| D | 212 | 60 | 75 | 90 | 110 | ||||||
| 200-200-250 | A | 610 | 72 | 160 | 220 | 315 | 305 | 17.5 | 22 | 30 | 45 |
| B | 580 | 65 | 160 | 200 | 280 | 290 | 16 | 18.5 | 30 | 37 | |
| C | 520 | 47 | 110 | 132 | 200 | 260 | 12 | 15 | 18.5 | 30 | |
| D | 470 | 32 | 75 | 90 | 110 | 240 | 8 | 11 | 15 | 15 | |
| 200-200-315 | A | 710 | 122 | 355 | 450 | 630 | 350 | 30 | 45 | 55 | 75 |
| B | 680 | 114 | 315 | 400 | 560 | 340 | 29 | 37 | 55 | 75 | |
| C | 600 | 87 | 220 | 315 | 400 | 300 | 22 | 30 | 37 | 55 | |
| D | 480 | 65 | 132 | 185 | 250 | 250 | 15 | 18.5 | 22 | 30 | |
| 200-200-400 | A | 850 | 203 | 710 | 1000 | 1250 | 426 | 50 | 90 | 110 | 160 |
| B | 830 | 190 | 630 | 900 | 1120 | 410 | 47 | 75 | 110 | 132 | |
| C | 750 | 145 | 500 | 710 | 900 | 370 | 36.5 | 55 | 75 | 110 | |
| D | 670 | 106 | 355 | 450 | 630 | 332 | 27 | 45 | 55 | 75 | |
| 250-250-315 | A | 545 | 27 | 55 | 75 | 110 | |||||
| B | 528 | 25 | 55 | 75 | 90 | ||||||
| C | 480 | 19 | 37 | 55 | 75 | ||||||
| D | 434 | 13 | 30 | 37 | 45 | ||||||
| 250-250-400 | A | 660 | 49 | 132 | 160 | 250 | |||||
| B | 630 | 46 | 110 | 160 | 200 | ||||||
| C | 565 | 36 | 75 | 110 | 160 | ||||||
| D | 500 | 24 | 55 | 75 | 90 | ||||||
| D | 625 | 71 | 220 | 315 | 400 | ||||||
| 300-300-400 | A | 1050 | 48 | 200 | 280 | 355 | |||||
| B | 1010 | 45 | 160 | 250 | 315 | ||||||
| C | 900 | 34 | 132 | 160 | 220 | ||||||
| D | 780 | 26 | 90 | 132 | 160 | ||||||
| C | 1170 | 100 | 500 | 800 | 1120 | ||||||
| D | 950 | 75 | 355 | 500 | 630 | ||||||
| 100-80-200 | A | 103 | 54 | 30 | 37 | 55 | 51 | 12.5 | 4 | 5.5 | 7.5 |
| B | 95 | 48 | 22 | 30 | 37 | 47 | 12 | 3 | 4 | 5.5 | |
| C | 84 | 38 | 15 | 22 | 30 | 41 | 9.5 | 2.2 | 3 | 4 | |
| D | 70 | 30 | 11 | 15 | 22 | 36 | 7.5 | 1.5 | 2.2 | 3 | |
| 100-80-250 | A | 127 | 82 | 45 | 75 | 90 | 64 | 20 | 7.5 | 11 | 15 |
| B | 120 | 76 | 45 | 55 | 75 | 60 | 19 | 7.5 | 7.5 | 11 | |
| C | 105 | 59 | 30 | 45 | 55 | 52 | 14.5 | 4 | 5.5 | 7.5 | |
| D | 87 | 45 | 22 | 30 | 37 | 46 | 11 | 3 | 4 | 5.5 | |
| 100-80-315 | A | 141 | 127 | 90 | 132 | 160 | 70 | 33 | 15 | 18.5 | 22 |
| B | 135 | 121 | 75 | 90 | 132 | 66 | 30 | 11 | 15 | 22 | |
| C | 115 | 97 | 55 | 75 | 110 | 56 | 24 | 11 | 11 | 15 | |
| D | 90 | 74 | 37 | 45 | 75 | 45 | 18 | 5.5 | 7.5 | 11 | |
| 100-80-400 | A | 171 | 187 | 160 | 220 | 280 | 85 | 46 | 22 | 30 | 45 |
| B | 159 | 170 | 160 | 200 | 250 | 80 | 42 | 18.5 | 30 | 37 | |
| C | 135 | 130 | 90 | 132 | 160 | 65 | 33 | 15 | 18.5 | 30 | |
| D | 116 | 95 | 75 | 90 | 132 | 53 | 25 | 11 | 15 | 18.5 | |
| 100-100-160 | A | 162 | 29 | 22 | 30 | 37 | 81 | 7.2 | 3 | 4 | 5.5 |
| B | 150 | 24 | 15 | 22 | 30 | 73 | 6 | 2.2 | 3 | 4 | |
| C | 130 | 17 | 11 | 15 | 18.5 | 63 | 4.3 | 1.5 | 2.2 | 3 | |
| D | 110 | 12 | 7.5 | 11 | 15 | 55 | 3 | 1.1 | 1.5 | 2.2 | |
| 100-100-200 | A | 193 | 50 | 45 | 55 | 75 | 95 | 12.5 | 5.5 | 7.5 | 11 |
| B | 180 | 44 | 37 | 45 | 75 | 90 | 10.5 | 5.5 | 7.5 | 11 | |
| C | 155 | 35 | 30 | 37 | 45 | 80 | 8.5 | 4 | 5.5 | 7.5 | |
| D | 135 | 26 | 18.5 | 30 | 37 | 70 | 6 | 3 | 3 | 4 | |
| 150-100-250 | A | 230 | 79 | 75 | 90 | 132 | 115 | 20 | 11 | 15 | 18.5 |
| B | 213 | 73 | 75 | 90 | 110 | 110 | 18 | 11 | 11 | 15 | |
| C | 190 | 58 | 45 | 75 | 90 | 100 | 14 | 7.5 | 11 | 11 | |
| D | 170 | 44 | 37 | 45 | 75 | 90 | 10 | 5.5 | 7.5 | 7.5 | |
| 150-100-315 | A | 250 | 126 | 132 | 200 | 220 | 125 | 31 | 18.5 | 30 | 37 |
| B | 240 | 120 | 132 | 160 | 200 | 119 | 29 | 18.5 | 22 | 30 | |
| C | 203 | 97 | 90 | 132 | 160 | 104 | 24 | 15 | 18.5 | 22 | |
| D | 170 | 71 | 75 | 75 | 110 | 86 | 17.5 | 11 | 11 | 15 | |
| 150-100-400 | A | 300 | 194 | 250 | 355 | 450 | 150 | 48 | 37 | 45 | 75 |
| B | 290 | 180 | 220 | 315 | 400 | 145 | 44 | 30 | 45 | 55 | |
| C | 260 | 145 | 160 | 220 | 315 | 130 | 36 | 22 | 30 | 45 | |
| D | 224 | 105 | 110 | 160 | 200 | 115 | 26 | 15 | 22 | 30 | |
| 150-150-200 | A | 320 | 44 | 55 | 75 | 110 | 160 | 11 | 7.5 | 11 | 15 |
| B | 300 | 39 | 45 | 75 | 90 | 152 | 9.5 | 7.5 | 11 | 15 | |
| C | 265 | 30 | 37 | 45 | 75 | 140 | 7 | 5.5 | 7.5 | 11 | |
| D | 220 | 23 | 22 | 30 | 45 | 123 | 5 | 3 | 4 | 5.5 | |
| 150-150-250 | A | 390 | 74 | 110 | 160 | 200 | 195 | 1835 | 15 | 22 | 30 |
| B | 355 | 62 | 90 | 110 | 160 | 180 | 16 | 15 | 18.5 | 22 | |
| C | 325 | 46 | 75 | 90 | 110 | 160 | 11.5 | 11 | 11 | 15 | |
| D | 310 | 40 | 55 | 75 | 90 | 155 | 10 | 11 | 11 | 15 | |
