ZX series self-suction pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
ZX series self-suction pumps
summary
ZX series self-suction pump is a self-priming centrifugal pump, it has compact structure, convenient operation, balanced operation and convenient maintenance, high efficiency, long service life, and have strong self-priming capacity, etc. In the pipeline it is unnecessary to install bottom valve, before the work, it just need to retain pump body to store leading liquid, thus simplifies the piping system and improve working conditions.
Applicable scope
(1) suitable for urban environmental protection, construction, fire control, chemical, pharmaceutical, printing, dyeing, brewing, electric power, the galvanization, the papermaking, mining, petroleum, equipment cooling, unloading oil tanker, etc.
2 suitable for rawwater, sea water and chemical medium liquid with acid, alkalinity and general paste slurry (medium viscosity ≤100 centipoise, solid content below 30%).
3 install impact drive sprinkler, also can pour water into the air and become small drips to spray, is a good tool in farms, nurseries, orchard, tea graden.
4 can equip with any type, specification filter press, it is the most ideal mating pump that transport slurry to filter press for filtering.

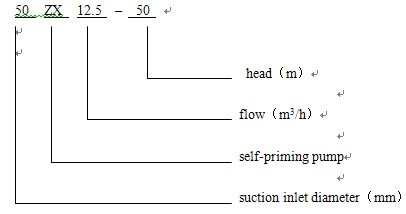

Type meaning example
ZX series self-suction pump Type meaning
performance parameters
| type | flow Q | head (m) | suction (m) | rotate speed (r/min) | self-suction performance (min/5m) | power (Kw) | ||
| (m3/h) | (L/s) | shaft power | motor power | |||||
| 25ZX3.2-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 1.9 | 0.46 | 0.75 |
| 25ZX3.2-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.8 | 0.8 | 1.1 |
| 40ZX6.3-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.9 | 0.87 | 1.1 |
| 40ZX10-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 |
| 50ZX15-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 2.4 | 1.1 | 1.5 |
| 50ZX18-20 | 18 | 5 | 20 | 6.5 | 2900 | 1.9 | 1.8 | 2.2 |
| 50ZX12.5-32 | 12.5 | 3.5 | 32 | 6.5 | 2900 | 1.5 | 2.1 | 3 |
| 50ZX20-30 | 20 | 5.6 | 30 | 6.5 | 2900 | 1.5 | 2.6 | 4 |
| 50ZX14-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 1.5 | 2.7 | 4 |
| 50ZX10-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 |
| 50ZX12.5-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 1.4 | 4.3 | 5.5 |
| 50ZXZX15-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 1.3 | 6.2 | 7.5 |
| 50ZX20-7.5 | 20 | 5.6 | 7.5 | 6.5 | 2900 | 1.3 | 9.8 | 11 |
| 65ZX30-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 2 | 1.9 | 3 |
| 65ZX25-32 | 25 | 6.9 | 32 | 6 | 2900 | 1.5 | 4.4 | 5.5 |
| 80ZX35-13 | 35 | 9.7 | 13 | 6 | 2900 | 3.4 | 1.9 | 3 |
| 80ZX43-17 | 43 | 12 | 17 | 6 | 2900 | 1.8 | 3.1 | 4 |
| 80ZX40-22 | 40 | 11.1 | 22 | 6 | 2900 | 1.9 | 4.4 | 5.5 |
| 80ZX50-25 | 50 | 13.9 | 25 | 6 | 2900 | 1.5 | 5.2 | 7.5 |
| 80ZX50-32 | 50 | 13.9 | 32 | 6 | 2900 | 1.5 | 6.8 | 7.5 |
| 80ZX60-55 | 60 | 16.7 | 55 | 6 | 2900 | 1.5 | 15 | 18.5 |
| 80ZX60-70 | 60 | 16.7 | 70 | 6 | 2900 | 1.2 | 20.1 | 22 |
| 100ZX100-20 | 100 | 27.8 | 20 | 6 | 2900 | 1.8 | 7.8 | 11 |
| 100ZX100-40 | 100 | 27.8 | 40 | 6 | 2900 | 1.8 | 16.3 | 22 |
| 100ZX100-65 | 100 | 27.8 | 65 | 6 | 2900 | 1.8 | 27.7 | 30 |
| 100ZX70-75 | 70 | 19.4 | 75 | 6 | 2900 | 1.8 | 24.3 | 30 |
| 150ZX170-55 | 170 | 47.2 | 55 | 5 | 2900 | 1.8 | 39.2 | 45 |
| 150ZX170-65 | 170 | 47.2 | 65 | 5 | 2900 | 1.3 | 46.3 | 55 |
| 150ZX160-80 | 160 | 44.4 | 80 | 5 | 2900 | 1.2 | 53.6 | 55 |
| 200ZX400-32 | 400 | 111.1 | 32 | 5 | 1450 | 2 | 52.1 | 55 |
| 200ZX280-63 | 280 | 77.8 | 63 | 5 | 1450 | 1.5 | 73.9 | 90 |
| 200ZX350-65 | 350 | 97.2 | 65 | 5 | 1450 | 1.5 | 97.2 | 110 |
| 250ZX550-32 | 550 | 152.8 | 32 | 5 | 1450 | 2 | 72.3 | 75 |
| 250ZX400-50 | 400 | 111.1 | 50 | 5 | 1450 | 2 | 80 | 90 |
| 250ZX450-55 | 450 | 125 | 55 | 5 | 1450 | 2 | 102.1 | 110 |
| 250ZX400-75 | 400 | 111.1 | 75 | 5 | 1450 | 1.5 | 125.6 | 132 |
| 300ZX600-32 | 600 | 166.7 | 32 | 5 | 1450 | 2 | 79.2 | 90 |
| 300ZX500-50 | 500 | 138.9 | 50 | 5 | 1450 | 2 | 104.6 | 110 |
| 300ZX550-55 | 550 | 152.8 | 55 | 5 | 1450 | 2 | 117.6 | 132 |
